Altitude/Speed Graph

[Aaryan]

I'm wondering how to get an altitude and speed chart on pirep_viewreport.php like the one in vataware? I know data can be extracted but dunno the implementation of the code. Any help?

[Sava]

Do you have the data in the row of the PIREP?

If so, it should be fairly easy. Check out Chart.js. It's a good library for making all sorts of charts/grahps etc.

[Aaryan]

Hmm. Ofcourse. The data is definitely recorded in ACARS. But yes again I would be stuck with the code. I know how to implement the data to any charts but yes I am not in a knowledge to find or call that data. Just like this VA has done.

https://dfy-va.net/phpvms/pireps/viewreport/721

Edited June 21, 2017 by Aaryan

[Sava]

Take your most recent pirep from the DB. What is in the raw_data column?

If there is data there, you can get it working. Take a look at the exaple Chart.js charts and you'll see the format it requires. It should be a simple JS array format

data = [1,2,3,4] etc.

And then each element of the array should have an associated element in the labels array. But check the docs for this.

A quick solution would be to just generate a script that creates a properly formatted string, and call it inside the .tpl/.php file. I guess the better way would be to perform some sort of AJAX call to get the data then do a $.each() on the array.



Did this for a VA.

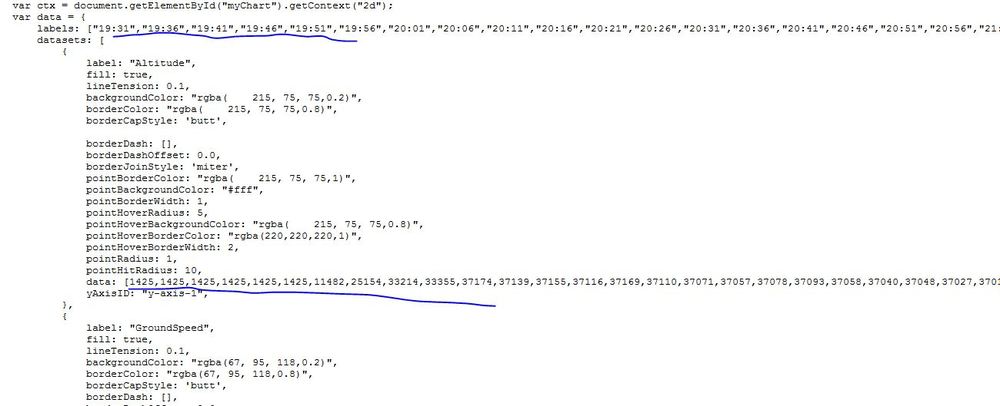

Take a look at the part of the code

Edited June 22, 2017 by Sava

[Aaryan]

You are so good buddy! Thanks for your help. This is the thing I wanted! +1 for you



Sincerely

Aaryan Kapoor

Edited June 23, 2017 by Aaryan

[Sava]

Np.

[st852]

On 2017/6/23 at 4:12 AM, Sava said:

Take your most recent pirep from the DB. What is in the raw_data column?

If there is data there, you can get it working. Take a look at the exaple Chart.js charts and you'll see the format it requires. It should be a simple JS array format

data = [1,2,3,4] etc.

And then each element of the array should have an associated element in the labels array. But check the docs for this.

A quick solution would be to just generate a script that creates a properly formatted string, and call it inside the .tpl/.php file. I guess the better way would be to perform some sort of AJAX call to get the data then do a $.each() on the array.



Did this for a VA.

Take a look at the part of the code

This message is great if you can share the code

we need flight map, please share this code to us also k922365@gmail.com



[st852]

On 2017/6/24 at 0:02 AM, Aaryan said:

You are so good buddy! Thanks for your help. This is the thing I wanted! +1 for you



Sincerely

Aaryan Kapoor

This message is great if you can share the code

we need flight map, please share this code to us also

[shakamonkey88]

I'd like to have something like this, but SmartCARS doesn't see to write data into the "rawdata" column

[st852]

"rawdata" How to show the graphics





Edited August 22, 2017 by st852

[shakamonkey88]

OK, so I now have data in the "rawdata" column.  I need some help creating the altitude and speed graphs. Can anyone give me a hand please?



Regards,



Pete

[mischka]

1 hour ago, shakamonkey88 said:

OK, so I now have data in the "rawdata" column.  I need some help creating the altitude and speed graphs. Can anyone give me a hand please?



Regards,



Pete

How did you get the data in the rawdata column?

[shakamonkey88]

Using Flight Position Tracker from CrazyCreatives

[LeonardIGO4036]

Even SmartCARS does it. But yeah, CCFT would be a more economical option for a VA.

[shakamonkey88]

I couldn't get SmartCARS to do it properly - and tfdi wouldn't respond to any support ticket. I like the information you get from CC position tracker

[shakamonkey88]

Just a quick question - does anyone know what page calls the pirep view and route_map on /index.php/pireps/view/XXXX?

I am trying to change the layout but the routemap is being called from somewhere other than pirep_viewreport.php

[RuiMiguel]

I do not know if this is what you are looking for

in core/modules/pireps/pireps.php find this

$this->render('route_map.tpl');

Edited October 27, 2017 by RuiMiguel

[shakamonkey88]

Yeah, found it and commented it out. Happy with the end result: https://i.imgur.com/MuZveAm.png

[RuiMiguel]

[zacmia]

Any chance someone can help me out with this? Not very good at coding.

[Yash]

1 hour ago, zacmia said:

Any chance someone can help me out with this? Not very good at coding.

Do you get rawdata from your ACARS system?

OR

Do you have Flight Position Tracker module by CrazyCreatives?

[zacmia]

I'm using the flight position tracker from cc.

[DarlanFernandes]

Does anyone have any idea how to do this? I have the Crazy Creatives module

[ProAvia]

1 hour ago, DarlanFernandes said:

Does anyone have any idea how to do this? I have the Crazy Creatives module



Be aware that the Crazy Creatives module is payware. We can not address your issues in this public forum. If you have issues, you will need to go to the CC forum (yes, we know that a response there is unlikely) or you can hope that a member here sees your post and sends you a PM.

[DarlanFernandes]

16 hours ago, ProAvia said:



Be aware that the Crazy Creatives module is payware. We can not address your issues in this public forum. If you have issues, you will need to go to the CC forum (yes, we know that a response there is unlikely) or you can hope that a member here sees your post and sends you a PM.

You say it everywhere. Crazy creatives have no active support you are complaining about.

[shakamonkey88]

18 minutes ago, DarlanFernandes said:

You say it everywhere. Crazy creatives have no active support you are complaining about.

It's not a complaint. It's a rule here and respecting a payware developers code. Just because they have no active support, doesn't give people the right to openly discuss, share, post code here from their payware modules.



Sava's comment above tells you how to do it.
